Are upper and lower ball joints the same?
Daniel Johnson Are ball joints universal?
Independent front suspension basics

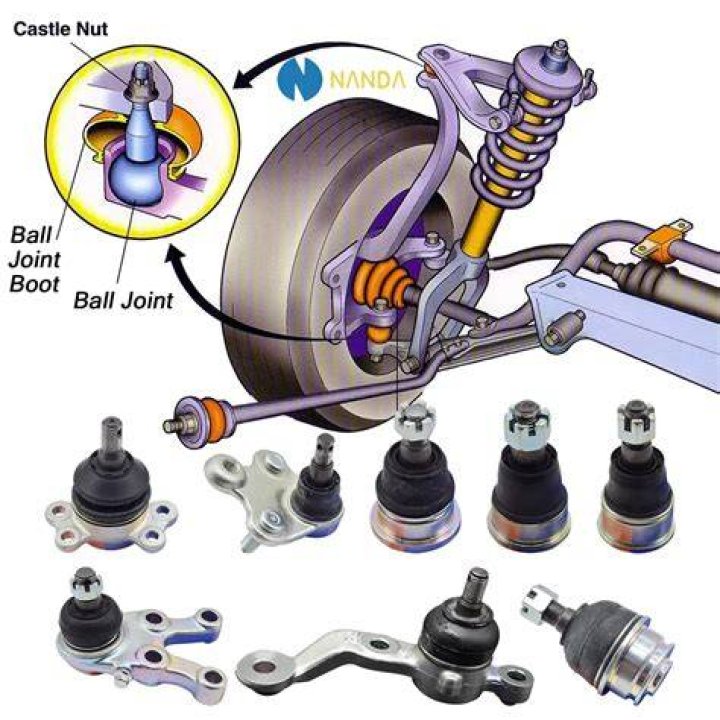

Ball joints are the critical components that connect your wheel hubs to the control arms. They provide universal pivoting movement between the wheel hubs and control arms to give you a safe, smooth ride and allow you to precisely control your vehicle.
What are the 2 types of ball joints?
There are two kinds of ball joints. Ball joints are classified as either load-carrying or follower types, and their position in the suspension varies depending on the suspension design. Load-carrying ball joints are designed to support the weight of the vehicle while providing a pivot point for the steering system.
Do upper and lower ball joints need to be replaced at the same time?
Many technicians recommend replacing both joints at the same time (both lowers, both uppers or all four). Another item that should be checked when ball joints are replaced is the stud hole in the steering knuckle — especially if the ball joint stud has broken or is loose.
What wears out first upper or lower ball joints?
The lower ball joint usually takes the biggest hits and wears out first. Not only does it need to handle the load of the vehicle, but it also absorbs the shocks of potholes and other bone-jarring road hazards.
How to Check if a Ball Joint is Bad
Can I just replace upper ball joint?
A loose or worn ball joint can be dangerous and should be replaced as soon as possible.
Do upper or lower ball joints last longer?
Depending on the type of suspension, most cars have both upper and lower ball joints. The lower ball joints are usually larger and wear out faster due to the weight of the front of car that rests on them.
Can you replace just the ball joint without replacing control arm?
In order to know if just the ball joint or the whole complete lower control arm needs replaced, the lower ball joint will need to be disconnected from the steering knuckle and checked to see if it fits tight in the lower control arm. If it is loose, then replace control arm.
How much does it cost to replace all 4 ball joints?
In general, ball joints are inexpensive with a range between $20 to $80 each. Labor will vary greatly by model. Some vehicles cost as low as $60 to $80. Yet others, especially four-wheel drive trucks, can range from $160 to $200 per ball joint.
Can I replace ball joints myself?
Ball joints are not always an easy replacement, but a DIYer who is versed in changing suspension and brake components will probably be able to tackle the job.
What is upper ball joint responsible for?
They help form a connection between control arms and steering knuckles. This provides smooth movement within the suspension.
Which ball joint is more important?
Some vehicles use a lower ball joint, while others use both. Heavy-duty vehicles such as trucks utilize a lower ball joint to support the weight, and an additional upper ball joint for pivotal requirements. The lower ball joint is usually larger to withstand the loads they are often subjected to.
Are ball joints and U joints the same?
It depends exactly what you want. Ball joints and universal joints aren't directly comparable as universal joints can transmit torque (as in drive shafts) whereas ball joints just provide location. There isn't an inherent difference in friction between the two as this will depend on manufacturing tolerances.
What happens if a ball joint breaks while driving?
You should not drive with a bad ball joint. Continuing to drive can cause damage to other vehicle components and if the joint fails completely you could lose control of the vehicle, leading to a crash and injuries.
How much does it cost to replace a ball joint?
Average Ball Joint Replacement Cost
You might be surprised to learn that replacing a ball joint is not overly expensive. You can expect to pay around $300 in most cases, including both parts and labor. Most ball joints cost about $100 to $150, while the labor costs will run you $150 to $200.
Are ball joints hard to replace?
Ball joint replacement is not straightforward, as they can be very tricky to access and install – especially with age and rust. On some cars, the ball joint is integrated into the control arm. If you're not familiar with the suspension and wheel assembly, it's best to visit a garage for a professional check.
How long do lower ball joints last?
How Long Do Ball Joints Last and When Should They Be Replaced? Ball joints can last 70,000 to 150,000 miles or more. Lifespan depends on use, road conditions, and weather.
How long does it take to replace ball joints and tie rods?
Your looking at alot of labor hours at a shop to relplace both ball joints, both tie rod ends and both strut bearings. I would say, just estimating, about 5-7 hrs of labor for all of that. The strut bearings are going to be the same labor as replacing the struts which is around 1.5 hrs a side.
How much does it cost to replace lower control arm ball joints?
The Best in Auto Repair
The average cost for suspension ball joint replacement is between $237 and $328. Labor costs are estimated between $151 and $190 while parts are priced between $86 and $138. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location.
How do you know when ball joints need to be replaced?
4 Signs Your Vehicle Needs The Ball Joints Replaced
- Clunking, Rattling Noise.
- Loose, Wandering Steering Feel. ...
- Harsh Cabin Vibrations. ...
- Uneven Wear On Front Tires. A loose ball joint in the front suspension will introduce some "play" that allows one of the front wheels to come out of alignment with the other. ...
Can you replace ball joints on one side?
After replacing the ball joints on one or both sides you will need to get an alignment done. If you only replace one side, get the alignment done, and need to replace the other side in a month, another alignment will need to be done.
What does a worn ball joint sound like?
Squeaking Noises
In addition to the clunking of the balls moving in the joints, you might also start to notice a squeaking noise. Like the clunking, you'll likely hear this when you're going around curves in the road or over bumps.
