What is the strongest thread insert?

Wire thread inserts are the strongest type of threaded connection. For this reason threads in critical applic-ations such as inside aircraft turbines and nuclear reactors are fitted with wire thread inserts from new.

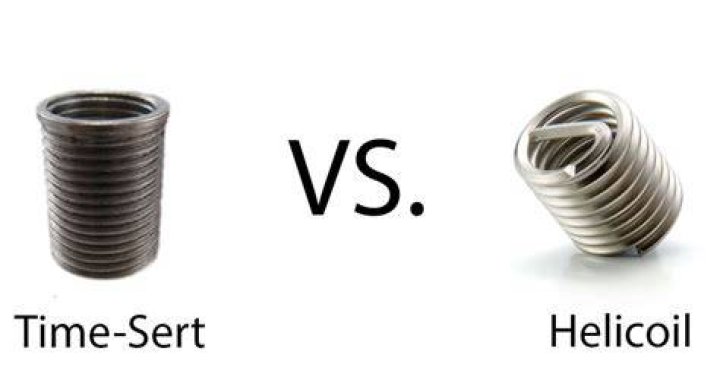

What is the advantage of using a Time-Sert for repairing damaged threads?

What is the advantages of using Time Sert thread repair compared to Helicoil? The Time Sert thread repair system employs a thin wall, self locking, solid bushing insert with positive placement on installation for "accurate specific depths". This ensures that the insert does not wind down into the threaded hole.

Are helicoils reliable?

The precision and reliability of the HELICOIL® wire thread inserts have been well proven by the demands of the aerospace and defence industries over the decades and are used extensively in some of the world's most popular and modern airliners.

Is helicoil stronger than original threads?

If a thread is "static" i.e. not likely to be done up and undone more than a few times in its lifetime, we would always say a helicoil type thread is the strongest option.

STRIPPED THREADS? THIS MECHANICS TRICK / HACK WILL SAVE YOU TIME, MONEY, AND LOTS OF FRUSTRATION

How do helicoils fail?

The point of failure is typically as the bolt passes through the helicoils locking feature. This problem is not limited to any one supplier, thread size, bolt type etc...

What is the advantage of using a helicoil?

Some of the advantages of using a Helicoil include… A large range of available thread diameters allow for use in a variety of thread repair applications. According to published data, inserts are available as small as a #2 screw size, and as large as 1 1/2″ diameter. Corresponding metric sizes are also available.

Can HeliCoils be removed?

Removing helicoils is a very difficult task, but it can be done with a helicoil extraction tool. This tool has a sharp blade that must be inserted at the top of the helicoil, and while being held in position strike the back of the tool with a hammer.

Can a Time-Sert be removed?

TIME-SERTs can be removed with a spiral point screw extractor, or drilled out with the drill that came in the repair kit. Not recommended to use ez-out or screw extractor on BIG-SERT because of the locking pin at the bottom of BIG-SERT it will create a cam lock effect. Drill out BIG-SERT's.

What does sti mean in threads?

STI (Screw Thread Insert) taps are manufactured to meet the tolerance of standard screw thread inserts. A screw thread insert is the best option for preventing the stripping of threads and Emuge STI taps are designed for screw threaded insert applications in a wide range of workpiece materials.

How much pressure can a helicoil take?

HELI-COIL® Pipe Thread Inserts are precision formed screw thread coils of 18-8 Stainless Steel wire cold rolled into a sharp crescent diamond shaped cross section having a tensile strength in excess of 200,000 psi and a smooth surface of 8 to 16 micro inches.

What is a locking helicoil?

These coils serve as a locking device by gripping the threads of the installed screw, effectively preventing the screw from loosening under vibration or impact. HeliCoil Screw Lock Inserts permit frequent removal and reassembly of bolts without appreciable loss of torque.

What are Keenserts used for?

KEENSERTS can be used in alloys, light materials, steel and cast iron to provide increased thread strength in low strength materials. They are also used for thread repair enabling the damaged thread to be replaced with the same size thread.

Do helicoils need special taps?

When preparing a hole to accept a Heli-Coil wire screw thread insert, a Screw Thread Insert or STI tap is used to prepare the hole. The recommended drill is utilized to open the hole to the correct minor diameter. The STI tap is then used to create the proper threads in the piece.

Can you tap a helicoil?

The threads made by the tapper used for helicoil is not going to work with the standard size bolts. The taps used are specific STI (Screw Thread Insert) tools. But of course, if you decide the old thread is not too damaged you can use a standard tap and try to fix it.

Should you use Loctite on helicoils?

Apply LOCTITE^® 2620™ Threadlocker into the helicoil

2620™ was selected because it is a high-strength threadlocker that can handle the high temperatures the headers will face.

Can you use a helicoil in cast iron?

In order to tap a hole for a Heli-Coil insert in cast iron, you must make sure you have the right type of milling machine. Cast iron is very hard and when you drill and tap a hole, you must run the machine at a very low speed and feed the tools at a very slow rate to avoid breaking them.

Can you replace a helicoil?

Re: removing/replacing helicoil

If it was installed properly with Loctite, it may require some heat to break it loose. To install new, chase the threads with the proper tap, clean threads thoroughly and install new insert with Loctite. Let cure overnight before you use.
