What does high tan delta mean?

Thus, the tan delta is ultimately an indication of the effectiveness of a material's damping capabilities. The higher the tan delta, the greater the damping coefficient, the more efficient the material will be in effectively accomplishing energy absorption and dispersal.

What does tan delta mean in rheology?

Tan delta represents the ratio of the viscous to elastic response of a viscoelastic material or in another word the energy dissipation potential of the material.

What is tan delta number?

Tan Delta Number is derived from the loss factor value to give a simple decreasing scale for oil condition.

What is tan delta in cable?

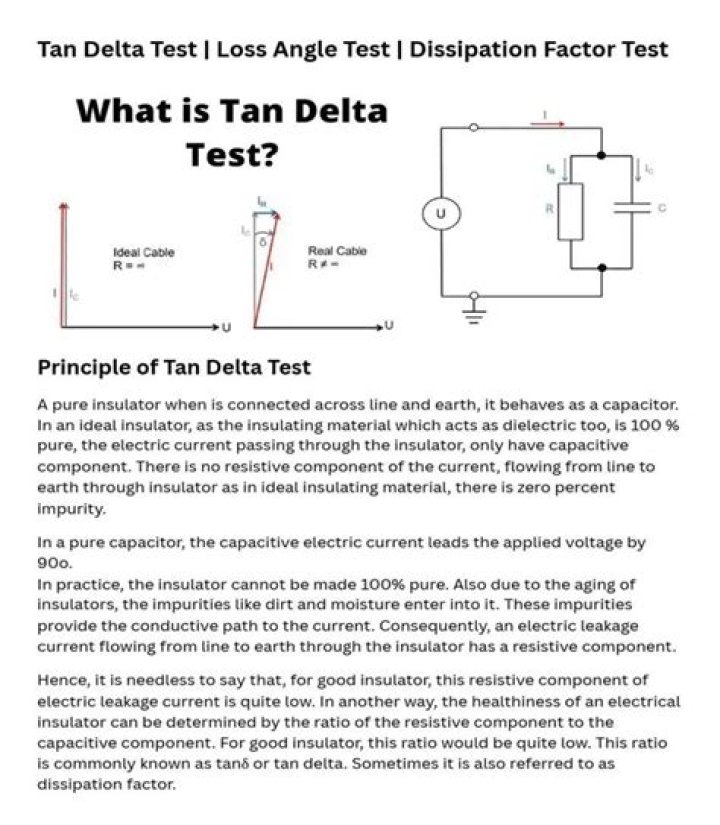

Tan Delta, also called Loss Angle or Dissipation Factor, is a diagnostic method of testing cables to determine the quality of the cable insulation. This is done to try to predict the remaining life expectancy and in order to prioritize scheduled maintenance, replacement, or rejuvenation of the cable system under test.

Tan Delta (DF or PF) Testing Explained part 1 - Why do we measure it ?

Why is tan delta required?

The main purpose of the tan delta test is to make sure of maintaining a secure and reliable functioning of the transformer. With the calculation of dissipation factor and capacitance values, it provides the result of insulation behavior of bushings and in windings too.

How do you calculate tan delta?

Considering tan delta = (2πfRC)^-1, where f = frequency, R = resistance, and C = capacitance, it can be seen that tan delta is very much frequency dependent.

What is meaning of negative tan delta?

The negative Dissipation Factor i.e. tan delta mainly appears due to concentrated moisture, winding bushing contamination and carbonization [1-2]. In this paper, the traditional methods used to detect the Dissipation Factor.

What is the value of tan delta test?

The frequency range for tan delta test is generally from 0.1 to 0.01 Hz depending upon size and nature of insulation. There is another reason for which it is essential to keep the input frequency of the test as low as possible. As we know, That means, dissipation factor tanδ ∝ 1/f.

What is tan delta oil?

The Oil Tan Delta (OTD) is a laboratory instrument, which measures the Tan Delta, Resistivity and Relative Permittivity of insulating liquids. These tests give a wider picture of the overall quality of the insulating oil, and will indicate if there is any contamination.

What is tan delta modulus?

The ability of the material to dissipate energy. Energy lost as heat. The Modulus: Measure of materials overall resistance to deformation. Tan Delta: Measure of material damping - such as vibration or sound damping.

What is tan delta test of motor?

Dielectric dissipation factor testing, also known as tangent delta or power factor testing, is a measure of the dielectric losses in an insulation system. In the field of rotating machines, this technique is widely used as an appropriate means of assessing the quality of new and also aged stator winding insulation.

What is use of tan delta test?

Tan delta (Tan δ, TD) testing, also called dissipation factor or loss angle, is used for measuring the degree of deterioration of shielded MV/HV cable insulation. The results reveal how contaminated, damaged, or water tree strewn the insulation has become.

What is tan delta tip up test?

Tan Delta/Power Factor Tip Up is a diagnostic procedure to measure or assess the deterioration of the insulating material under test. Equipment used: Lemke Dissipation Factor & Capacitance Measuring System, LDV-5.

What is UST and GST mode in tan delta testing?

DELTA 4000 supports two basic groups of operation, GST and UST mode. GST stands for grounded specimen test while UST stands for ungrounded specimen test. Within the two groups the test set can be operated in seven test modes as summarized in Table 1.1.

What is the difference between tan delta and power factor?

Power factor is also sometimes referred as The dissipation factor, OR called tan(δ), which is calculated via the tangent of the angle δ between the measured current and the ideal current that would occur if no losses would existed.

What is dissipation factor in tan delta?

Dissipation factor (DF or tan δ) is the electrical property of plastics and other electrical insulating materials. It is defined as the reciprocal of the ratio between the insulating materials' capacitive reactance to its resistance (Equivalent Series Resistance or ESR) at a specified frequency.

What is tan delta in current transformer?

What Is Tan δ, Or Tan Delta? Tan Delta, also called Loss Angle or Dielectric Dissipation Factor (DDF) or Power Factor (PF) testing, is an electrical dielectric test on the insulating oil used to determine its quality. The test is performed at two temperatures.

What is tan delta in dynamic mechanical analysis?

The ratio of the loss to the storage is the tan delta and is often called damping. It is a measure of the energy dissipation of a material.

What is shear loss?

When a lubricant undergoes shear thinning, the viscosity of the fluid can be lowered by an entire ISO grade leaving moving parts in danger of wear or seizure. To ensure the stability of the fluid's viscosity, tests are performed to analyze behavior under shear stress and temperature.

What does loss modulus mean?

Loss modulus (E″) is the measure of the energy dissipated as heat when the material turns viscous. From: Modelling of Damage Processes in Biocomposites, Fibre-Reinforced Composites and Hybrid Composites, 2019.

What is stress vs strain?

Stress is the force applied to a material, divided by the material's cross-sectional area. Strain is the deformation or displacement of material that results from an applied stress.

What is G and G in rheology?

The G' refers to the elastic modulus, and reflects elastic behavior of a material when deformed. The G" refers to the viscous modulus, which reflects the flow of a material while it is deformed.

What is storage stiffness?

Young's modulus, or storage modulus, is a mechanical property that measures the stiffness of a solid material. It defines the relationship between StressStress is defined as a level of force applied on a sample with a well-defined cross section.
